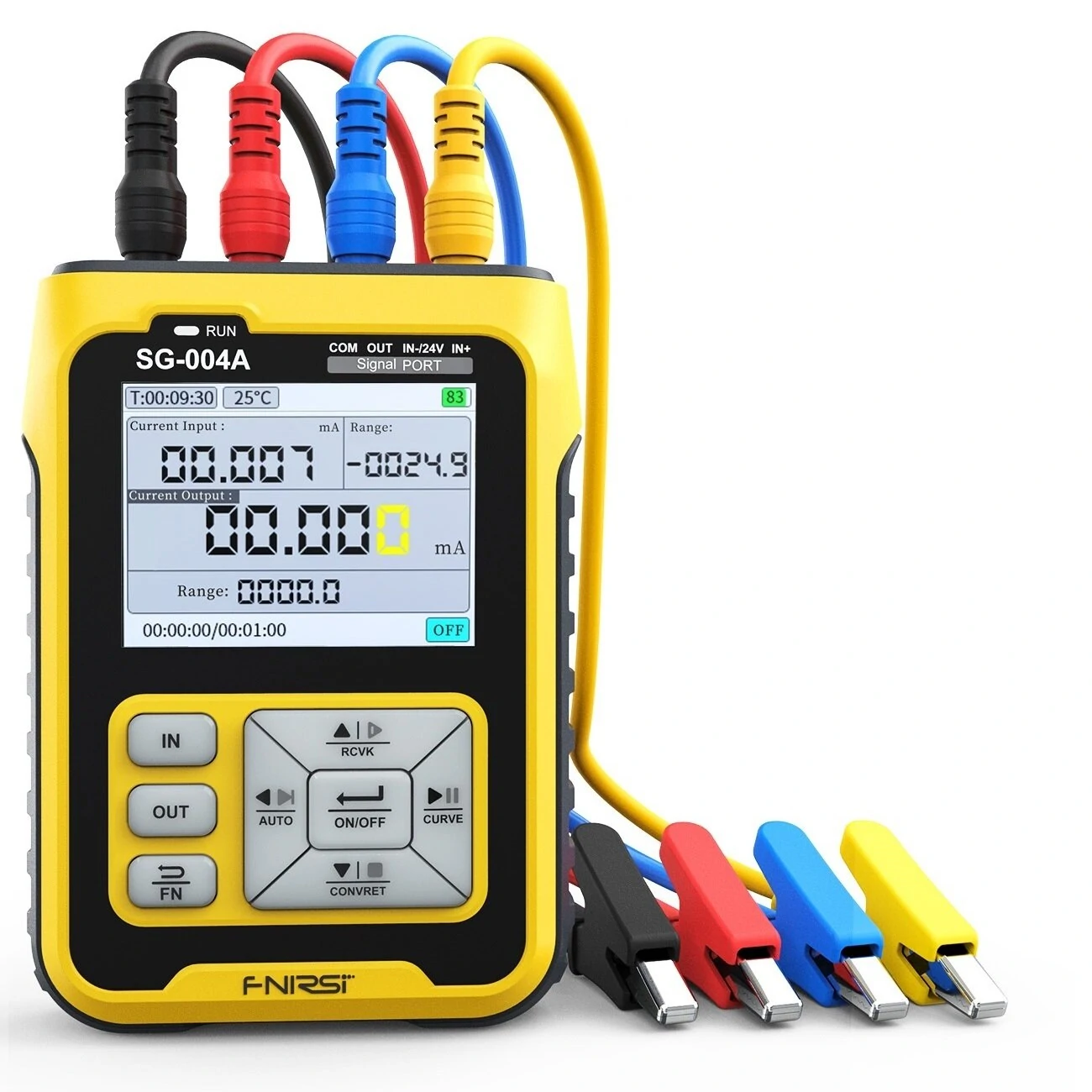

FNIRSI SG-004A signal generator- DC Voltage, Current- Analog Source- Thermocouple Signal- RTD Signal- 24V Power Distribution Output- Program Output
  Features
- ≤0.2% Error
- Engineering quantity / signal value
- Real-Time curve record view
- 2.4″TFT Full Color HD display with backlight
- Designed for industrial control industry
- stable appearance design.
- Supports voltage, current, frequency, thermocouple, and other signal modes for both output and input.
- Provides support for independent 24V power supply
- Offers programming mode for customization
- Facilitates real-time curve visualization
- Allows for historical data recording
- Supports MODBUS communication protocol
- Enables seamless firmware upgrades
- Incorporates other powerful functions for enhanced functionality
Extended Function:
- Program automatic lift output
- Signal linear conversion output
- History record
- Modbus slave
- Preset output
- Real-time curve
- Output timing
- USB Emulated U Disk Firmware Upgrade
Package Includes:
1 x SG-004A Signal Generator
4 x Alligator Test Clips
1 x USB charger(EU Plug)
1 x Type-C Cable
1 x User Manual
1 x Packing Box
Note: We will send the appropriate adapter according to your country
Kirk –
This small device can fit in a shirt pocket, the connecting wires need another pocket, but, this is easy to take anywhere. The user interface was hard for me to figure out, until I read the instructions, then it became only a little challenging. If a person used this regularly, set up would become easy, but for someone who uses it only occasionally, well, don’t lose the instructions!
No problem with the European power plug, who doesn’t have type-C outlets and adapters all over the place these days? In fact, the one adapter I didn’t have until this showed up was a European plug adapter, now I do. Thanks!
Customer –
Works great for the money…but be careful. it has no circuit, high voltage or high amperage protection. If you accidently connect it to something you shouldn’t… Poof
